กล่องเกเบี้ยน (GABION) และ แมทเทรส (MATTRESS)

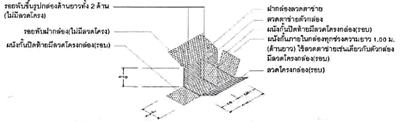

 สร้างขึ้นจากลวดเหล็กเคลือบสังกะสี นำมาถักเป็นแผ่นตาข่ายเป็นรูปหกเหลี่ยม (Hexagonal)  ซึ่งพันเกลียวแน่เป็นคู่จำนวนอย่างน้อย 5 เกลียว สำหรับกล่อง GABION และ อย่างน้อย 3 เกลียว สำหรับกล่องแมทเทรส โดยลวดทั้ง 2 เส้น จะต้องบิดพันเข้าหากัน ลวดเหล็กเคลือบด้วยสังกะสี  เป็นไปตามมาตรฐานสากล  หรือ ลวดเหล็กชุบสังกะสี   และ หุ้มพีวีซีหนา    0.4 - 0.6 มม. อีกชั้นหนึ่ง  ขอบทุกด้านของกล่อง เสริมความแข็งแรงด้วยลวดโครงกล่องที่มีขนาดใหญ่กว่าลวดตาข่าย ทุกๆ ระยะ 1 เมตร ตามความยาวของกล่อง จะมีแผ่นกระบังกัน เพื่อความแข็งแรงของกล่อง  แผ่นตาข่ายแต่ละชิ้น ประกอบขึ้น จากแผ่นลวดตาข่ายที่นำมาพับขึ้นเป็นรูปกล่องรูปลูกบาศก์ และมีฝาปิดเปิดสำหรับบรรจุหินได้โดยสะดวก ทั้งนี้ฝาปิดกล่องจะต้องติดกับตัวกล่อง



03

0405

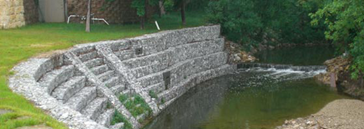

กล่องสำเร็จรูป จะถูกพับเป็นแผ่น  และ  จัดส่งไปหน่วยงานก่อสร้างเป็นมัด เพื่อสะดวกต่อการขนย้ายและจัดส่ง  หลังจากคลี่กล่องออก และ ประกอบเป็นรูปกล่องด้วยลวดผูก  ที่จัดส่งไปให้เป็นขด  วางกล่องให้ได้ระดับ  และจัดเรียงในตำแหน่งที่เหมาะสม  ผูกยึดกล่องเข้าด้วยกันให้ได้แนว จากนั้น จึงบรรจุหินใหญ่ ลงภายในกล่อง พร้อมปิดฝากล่องให้แน่น การจัดวางกล่องเป็นชั้นๆ หรือเป็นผืนระนาบตามโครงสร้างที่ออกแบบ ให้เพื่อใช้ในงาน ป้องกัน การกัดเซาะต่าง ๆ  เช่น  งานป้องกันดินพังทลาย  งานกัดเซาะตลิ่งแม่น้ำ  หรือ กันคลื่นทะเล  เป็นต้น



06



Gabions  are   rectangular cages made of  hexagonal  double twister heavy galvanized, 5 twists mesh for gabions and 3 twists  mesh  for  mattress   or  coated  with   pvc sleeve  0.4 – 0.6 mm. thickness, wire mesh. Reinforcement is provided by heavy  selvedge wires along  the edge of the mesh.Crates are  divided into 1 m   compartments   which   restrict   movement  of  the filling  material. The crates  themselves are wired to  each other as each is placed in position.

Mattress  is a shaped  version of  the gabion which used for lining work but mesh and wire size  are smaller than that used to manufacture the gabions.

Gabions and mattress are delivered to the site semi-assembled. After erecting  and wiring-up , each cage is  filled with  suitable stone to form a designed  structure  used  for erosion resistane such as retaining wall, river banks, revertment shape protection, channel linings, piers  and other structures.



08
